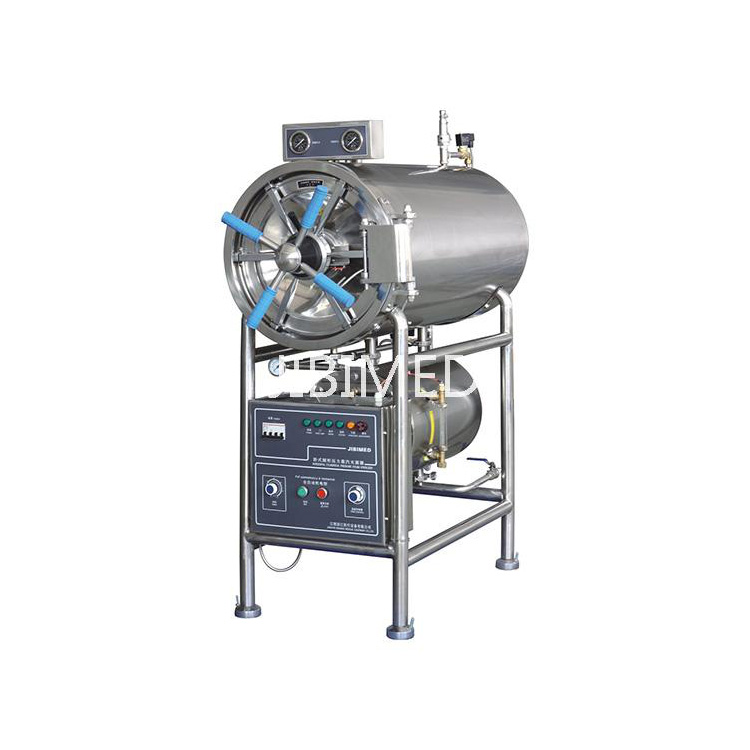

Microcomputer Control Steam Autoclave

Microcomputer Control Steam Autoclave

Microcomputer Control Steam AutoclaveUseThe Microcomputer Control Steam Autoclave, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according ......

Send Inquiry

Product Description

Microcomputer Control Steam Autoclave

Microcomputer Control Steam Autoclave

Use

The Microcomputer Control Steam Autoclave, which is adopted the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.



Characteristics

• Auto matially controlled the sterilizing process, easy to operate.

• With drying function, suitable for the medical dressing drying.

• With over temperature, over pressure auto protect.

• The door can not be open until the pressure in the chamber is reduced to 0.027MPa. And the unit can not be started on if the indoor doesn't close well.

• The safety valve will be open automatically when the inner pressure over 0.24MPa and the steam would be exhausted the water tank.

• Automatically cut off the power if the water lack happened, and alarm at the meanwhile.

• The chamber of the sterilizer is made of stainless steel.

• With printer.



Technical Data

MODELWS-150YDBWS-200YDBWS-280YDB
Technical Data
Sterilizing chamber volume150Lφ440×1000200Lφ515×1000280Lφ600×1000
Working pressure0.22Mpa
Working temperature134℃
Temperature adjust range40℃-134℃
Time for sterilization0-99min
Time for drying0-99min
Heat average≤±2℃
Power9kw/380V 50Hz9kw/380V 50Hz12kw/380V 50Hz
Dimension(mm)1400×650×16001400×750×17001520×910×1900
Exterior package dimension(mm)1560×820×18201560×910×18801680×1080×2100
G.W/N.W430/340kg436/350kg570/462Kg
